GIPOREC ZP 170 R

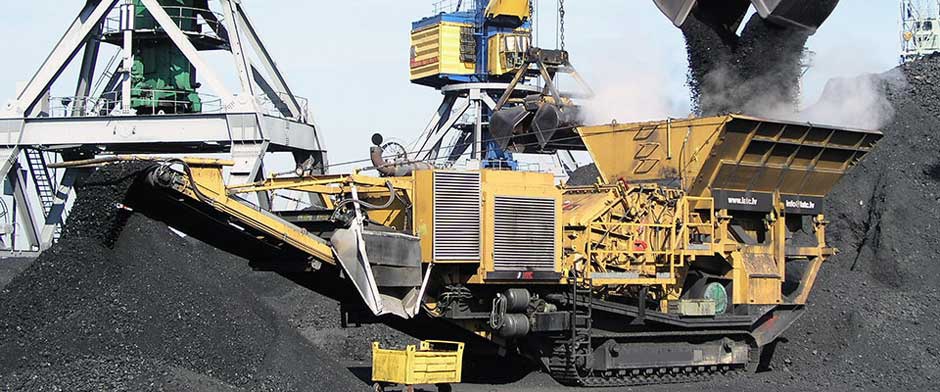

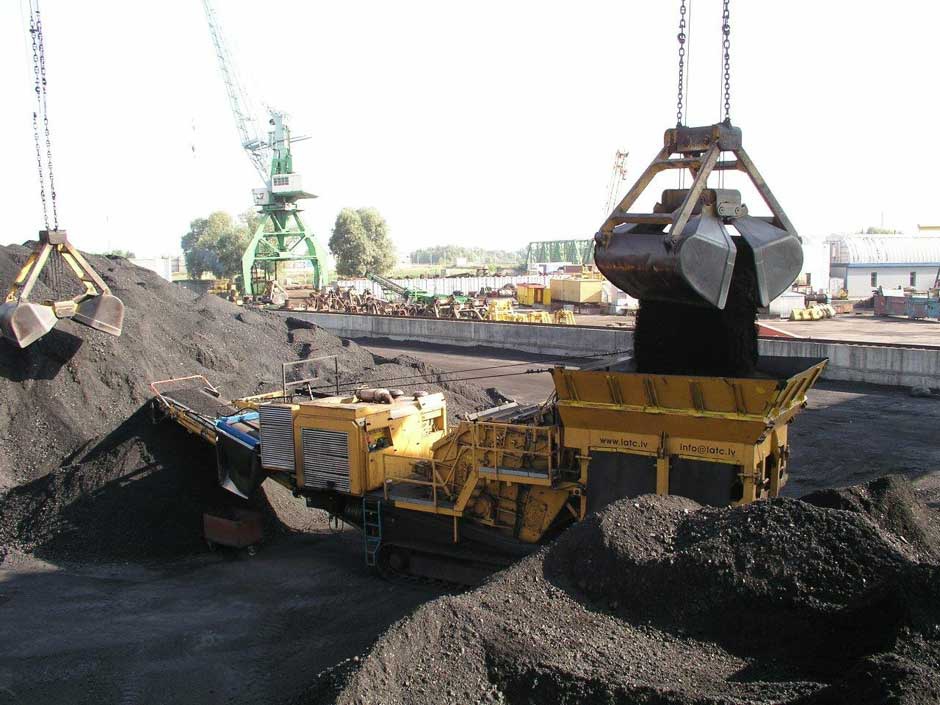

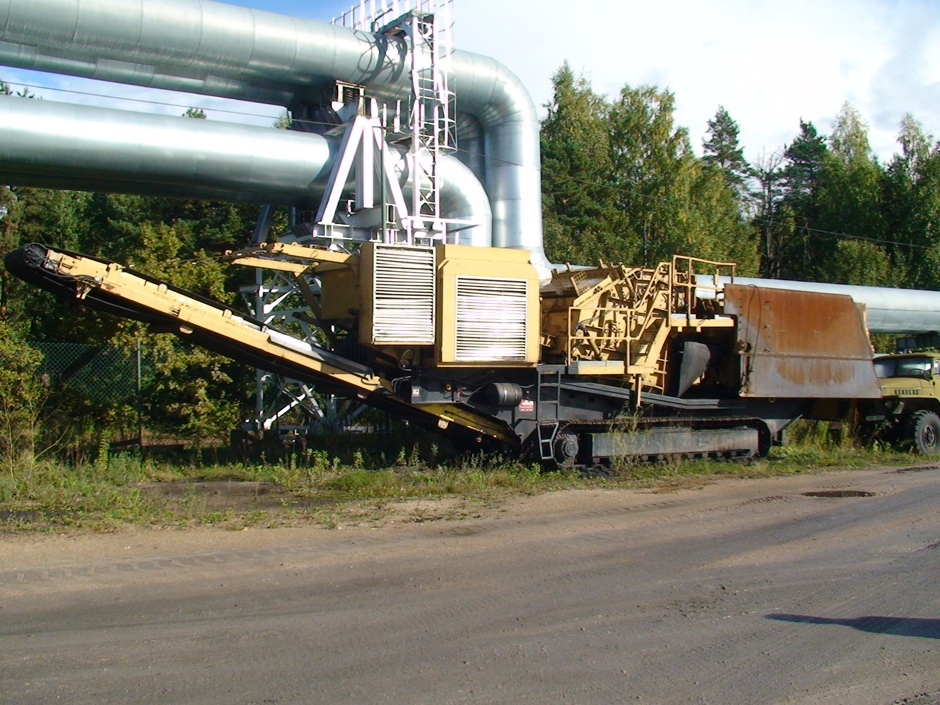

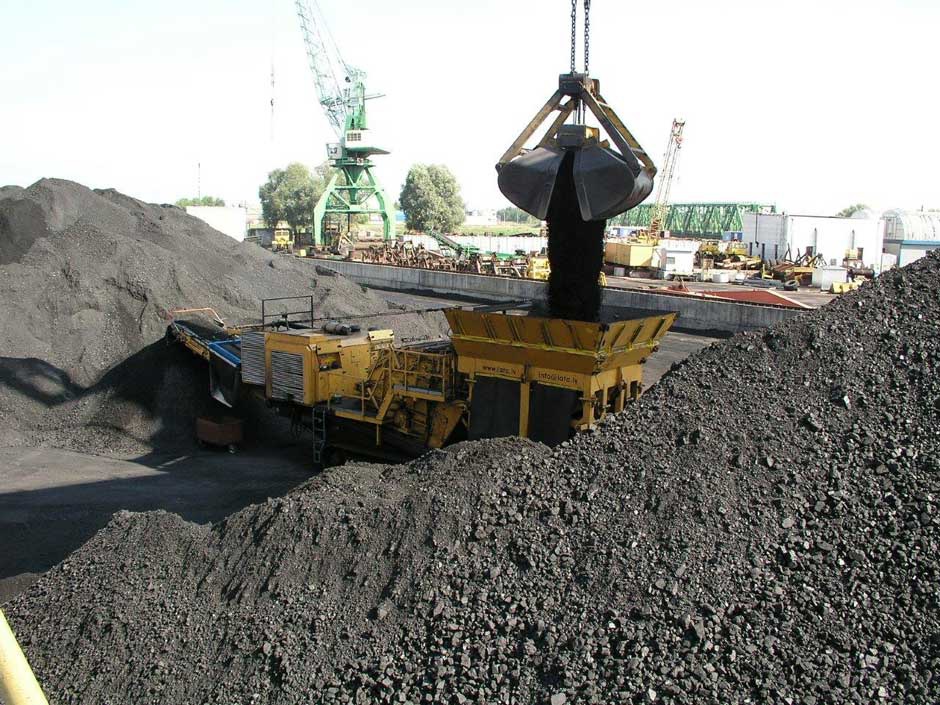

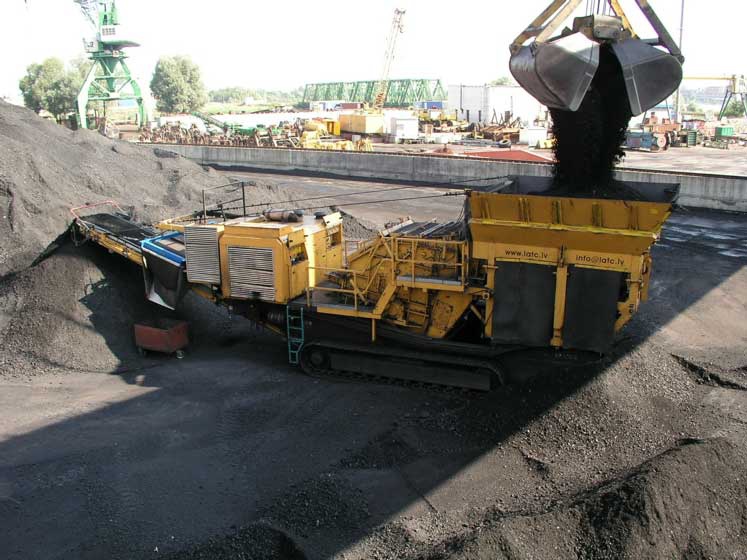

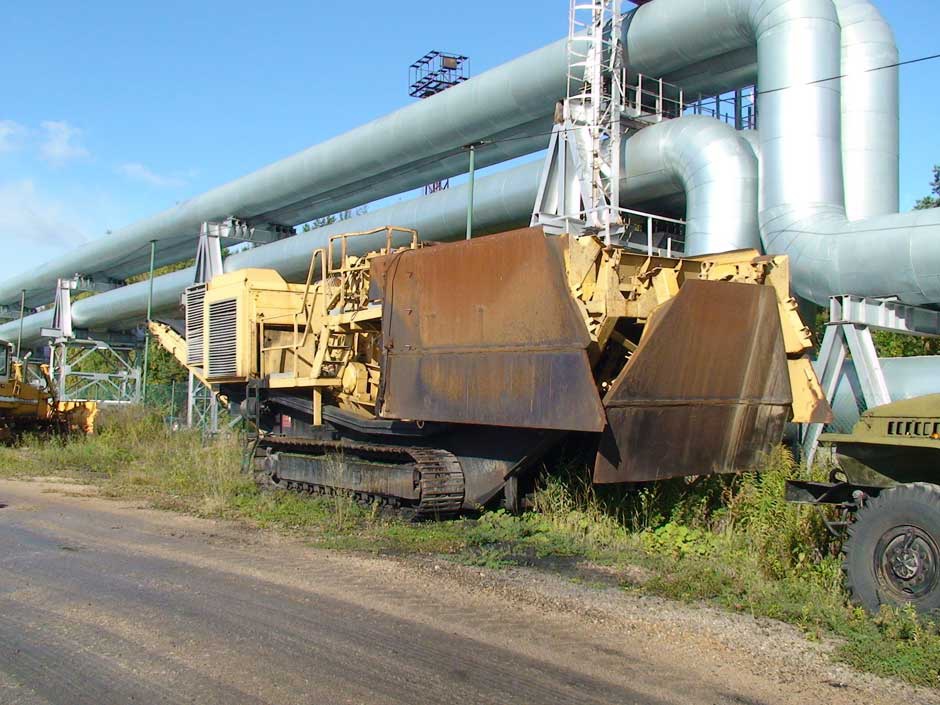

Mobile Impact Crusher GIPOREC ZP 170 R

Capacity: up to 700 t/h
Fuel Consumption: 55-60 l/h
Manufactured: Switzerland
Production Year: 1998


Overview

Plant Type Сrushing
Realization On tracks
Drive Diesel-hydraulic
Crusher type Impact

Capacity

Capacity, m³/h 700 m³/h
Capacity, t/h 600-1100 t/h

Engine

Model CAT 3412 DITA
Power 541 Kw
Average Fuel Consumption 55-60 L/h
Crankcase Heating System No

Feed hopper

Size 24 m³
Extension possibility Option
Lenghtening possibility Option
Variable Speed for the Feeder No
Anti-freeze coating No

Crushing Chamber

Max. Feeding Size 1640 х 925 mm
Rotor Width 1700 mm
High durability blow bars Option

Chassis

Movement Wired Remote Control Yes
Movement Radio Remote Control No
Transportation Type Trailer

Conveyors

Tail Conveyor Width 1800 mm

Safety

Emergency Shutdown System Yes
Auto-Start System No
Automatic Engine RPM Control Yes
Operator Ladders and Platforms Yes
Folded Conveyor Transport Fastners Yes

Condition

Production Year 1998

Transport Dimensions

Width 17260 mm
Length 3600 mm
Height 3750 mm

Working Dimensions

Width 17260 mm
Length 3600 mm
Height 5120 mm
Tail Conveyor Stack Height 3500 mm

Weight

Standard plant 70000 kg
With magnetic separator 71500 kg
